MINI R53 | Cooper S | W11B16 | Supercharger Service Kit + Waterpump + Flange

Supercharger Service kit PLUS OE specification Waterpump PLUS Genuine MINI waterpump to block flange

Full kit for servicing on or off the vehicle, includes allen key to remove plugs as most sets do not include a 3/16 one! Includes MIKALOR automotive narrow band clips NOT standard Jubilee clips. All seals and gaskets are from OEM manufacturers (Victor REINZ / Elring) and are either Viton or Silicone rubber depending on OE specification.

We also include the correct specification crank sensor O Ring (not black viton as other kits as this type will fail) as this is prone to leaking with age and is an easy additional job whilst the charger is removed.

CONTENTS

200ml Mobil Oil to MIL-PRF- 23699

2 x water pump Viton O Rings (OE Ref 11517509186)

1 x air tube green seal (OE Ref 11610020836)

1 x large supercharger horn gasket (OE Ref 17511520044)

1 x small horn to intake gasket (OE Ref 17511524319)

1 x throttle body seal (OE Ref 13547509045)

1 x dipstick tube O Ring ? correct blue type(OE Ref 11437513891)

1 x crank sensor ring ? correct blue silicone rubber type (OE Ref 12147514983)

1 x bypass valve pipe (Custom UK manufactured)

2 x viton O rings for drain plugs

1 x syringe & pipe

3 x large Mikalor narrow automotive hose clips

2 x small Mikalor narrow automotive hose clips

1 x 3/16 allen key

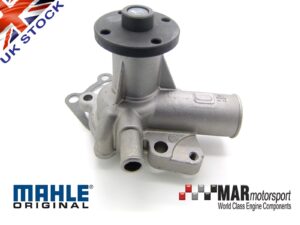

1 x OE Specification Water pump

1 x 11517509170 Water pump to block flange
