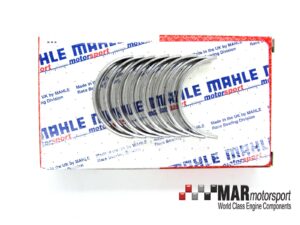

Ford Duratec 1.8 | 2.0 | ST150 | MAHLE MOTORSPORT VP2 Conrod Bearings

Manufactured in the UK in a factory that is dedicated to producing racing parts. In fact it is the exact same factory that is producing bearings for most of the Formula 1 grid as well as all other leading race series!

Bearing Construction

Manufactured with high strength steel back with a cast bronze substrate and finished with a lead indium overlay, originally known as VP2. This unique structure gives a higher fatigue strength than other Race bearings along with better conformability.

Laser Marking

All MAHLE Motorsport bearings are laser marked. Traditional stamping can cause bearing distortion and prevent efficient heat transfer to the housing leading to failure.

Racing Notch

Where possible MAHLE Motorsport bearings are produced with a racing notch. This prevents oil film disruption and removes a potential oil leakage path therefore ensuring a long bearing life.

Weight	0.25 kg
Dimensions	23 × 11.5 × 2.5 cm
Alternatives	014PS20800000, 181 085 001 500, 37071600, 4B4390 STD, 4B4390H STD, 4B4390HX STD, B3281STD, CR4515SI STD, CR4515XP STD, CR4515XP STDX
Part Type	Conrod Bearings
Material Type	VP2 Lead Indium
No of Bearing Pairs	4 Pairs
Bearing Thickness	1.509mm
Bearing Width	16.90mm
Housing Size	50.025 – 50.046mm
Crank Size	46.980 – 47.000mm
Notch Type	Standard
Standard Or Performance?	Performance
