Cosworth YB | Sierra | Escort | All Models | WRC Long Rod Pistons With Pockets

Cosworth YB | Sierra | Escort | All Models | WRC Long Rod Pistons With Pockets - Image 2

Cosworth YB | Sierra | Escort | All Models | WRC Long Rod Pistons With Pockets - Image 3

Cosworth YB | Sierra | Escort | All Models | WRC Long Rod Pistons With Pockets - Image 4

Cosworth YB | Sierra | Escort | All Models | WRC Long Rod Pistons With Pockets - Image 5

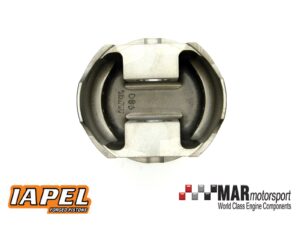

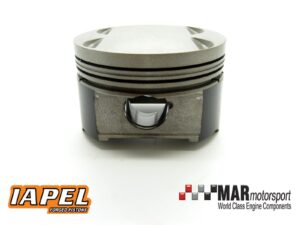

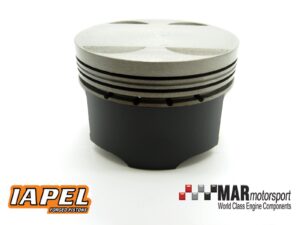

Cosworth YB | Sierra | Escort | All Models | WRC Long Rod Pistons With Pockets

£749.00

Select Size

Clear

On Back Order - Contact us for delivery date

SKU: 230242 Category: Forged Pistons

Forged Pistons Designed to Win

IAPEL are a specialist manufacturer of forged pistons, forged custom pistons and high performance pistons for race engines and racing series globally. From factory teams to street applications, IAPEL supports many race series globally. They are a family owned business founded in 1974 by Serafn Gonzalez and today is managed by him along with his four sons.

Weight	2 kg
Part Type	Forged Pistons
Material Type	Hybrid 4032
Bore Size	90.83mm
Compression Height	33.00mm
Compression Ratio	10.0:1
Pin Size	24.00mm
Piston Weight	412g
Ring Layout	1.5 / 1.75 / 3.0
Rod Length	136.00mm
Stroke	76.95mm
Crown Vol	0cc
Clearance	0.08mm
Coatings	Skirt
